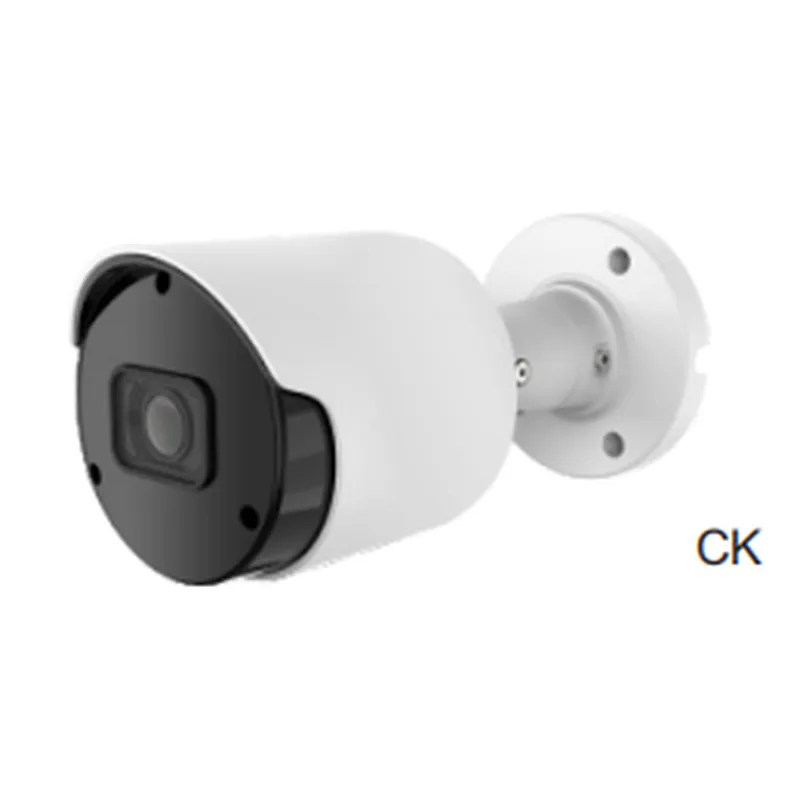

Haozhixin Day/Night IPC  2/5/8MP AI Fixed Series

HZX-IP281

Fixed(M12)

3.6/2.8mm

IR Viewable Length:Up to 30m


WDR

3D DNR

RJ45(10/100BASE-T)

H.265/H.264

ONVIF(

IP66

PoE







Description


Imaging Device

1/2.8"

1/2.7"

1/2.8"

1/2.7"

Effective Pixels

2MP 1920(H)×1080(V)

5MP 2592(H)×1944(V)

8MP 3840(H)×2160(V)

Min. Illumination

Color 0.002Lux @(F1.2,AGC ON) ;   B/W 0 lux @ IR ON

Lens Type

Fixed(M12)

Focal Length

3.6/2.8mm

Angular Field of View

Horizontal: 87°, Vertical: 44°, Diagonal: 104°

Horizontal: 79°, Vertical: 56°, Diagonal: 106°

Horizontal: 87°, Vertical: 44°, Diagonal: 104°

Horizontal: 91°, Vertical: 46°, Diagonal: 109°

Min. Object Distance

2m

IR Viewable Length

Up to 30m

Day & Night

IR cut lter with auto switch(Day/Night/Auto/Image/Schedule)

Wide Dynamic Range

WDR

Digital Noise Reduction

3D DNR

Motion Detection

Off/On (8 Level)

White Balance

Auto/Manual

Electronic Shutter Speed

1/5 ~ 1/20000s

On-Board Storage

Micro SD slot, up to 256GB

Alarm

NA

Audio

Built-in microphone

Hardware Reset

Yes

Smart Feature

PID,LCD,PD/VD, FD,SOD,CC,HM,CD  QD,LPD,RSD

FD,PD&VD,PID,LCD,SOD,CC,HM,CD,QD

Ethernet

RJ45(10/100BASE-T)

Video Compression Format

H.265/H.264

Max.Resolution

1080P(1920x1080)@60fps

5MP(2592x1944)@30fps

8MP(3840x2160)@30fps

8MP(3840x2160)@25fps

Video Quality Ajustment

8Kbps ~ 8Mbps

8Kbps ~ 16Mbps

Protocol

TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP

Application Programming Interface

ONVIF( Prole S/G/T)

Operating Conditions

-30   +55°C / 95% RH

Ingress Protection

IP66

Input Voltage / Current

D12V/PoE(IEEE802.3af)

Power Consumption(IR OFF)

2W - 4W

Power Consumption(IR ON)

4W - 6.5W

Material

Metal
