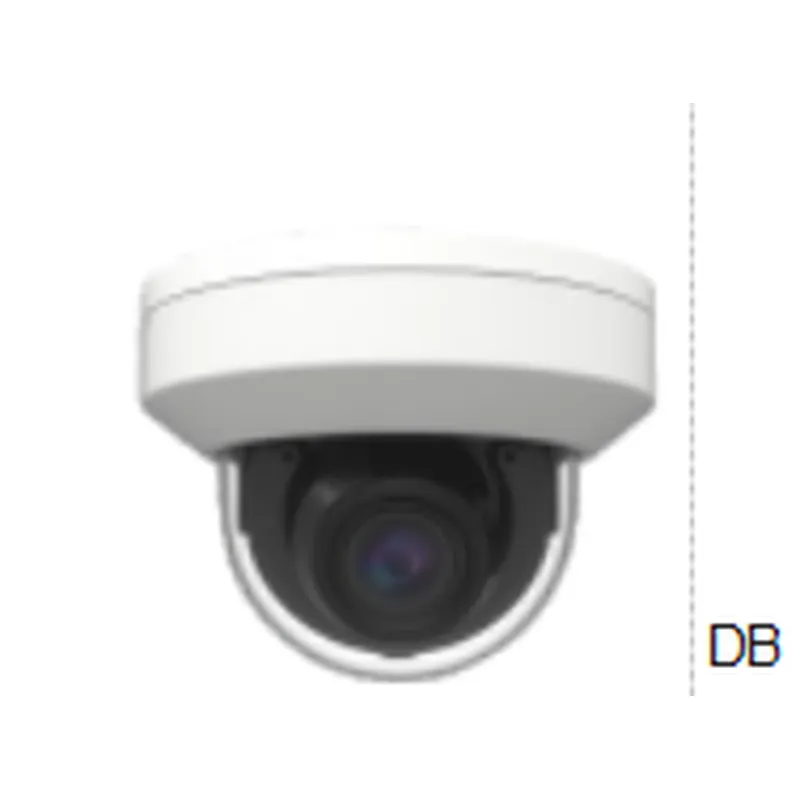

Haozhixin Day/Night IPC  2/5/8MP AI Varifocal Series

HZX-IP481

Motorized(Ø14)


IR cut filter with auto switch(Day/Night/Auto/Image/Schedule)

WDR
3D DNR

RJ45(10/100BASE-T)

H.265/H.264

ONVIF

IP66


Description


Imaging Device

1/2.8"

1/2.7"

1/2.8"

1/2.7"

Effective Pixels

2MP 1920(H)×1080(V)

5MP 2592(H)×1944(V)

8MP 3840(H)×2160(V)

Min. Illumination

Color 0.002Lux @(F1.2,AGC ON) ;   B/W 0 lux @ IR ON

Lens Type

Motorized(Ø14)

Focal Length

2.8-12mm

2.7-13.5mm

Angular Field of View

Horizontal: 33 ~ 101°, Vertical:18 ~ 52°,

Diagonal: 37 ~ 124°

Horizontal: 31 ~102°, Vertical: 23 ~ 73°,

Diagonal: 38 ~ 138°

Horizontal: 33 ~111°, Vertical: 18 ~ 57°,

Diagonal: 37 ~ 134°

Horizontal:34-116°, Vertical: 19-59°,

Diagonal: 39-142°

Min. Object Distance

1.2m(W/T)

0.3m~INF

0.8m~INF(W),1m~INF(T)

IR Viewable Length

Up to 30m

Day & Night

IR cut lter with auto switch(Day/Night/Auto/Image/Schedule)

Wide Dynamic Range

WDR

Digital Noise Reduction

3D DNR

Motion Detection

Off/On (8 Level)

White Balance

Auto/Manual

Electronic Shutter Speed

1/5 ~ 1/20000s

On-Board Storage

Micro SD slot, up to 256GB

Alarm

1 input, 1 output

Audio

1 input (RCA), 1 output (RCA)

Hardware Reset

Yes

Smart Feature

PID,LCD,PD/VD, FD,SOD,CC,HM,CD  QD,LPD,RSD

FD,PD&VD,PID,LCD,SOD,CC,HM,CD,QD

Ethernet

RJ45(10/100BASE-T)

Video Compression Format

H.265/H.264

Max.Resolution

1080P(1920x1080)@60fps

5MP(2592x1944)@30fps

8MP(3840x2160)@30fps

8MP(3840x2160)@25fps

Video Quality Ajustment

8Kbps ~ 8Mbps

8Kbps ~ 16Mbps

Protocol

TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP

Application Programming Interface

ONVIF( Prole S/G/T)

Operating Conditions

-30   +55°C /   95% RH

Ingress Protection

IP66

Input Voltage / Current

D12V/PoE(IEEE802.3af)

Power Consumption(IR OFF)

3W - 5W

Power Consumption(IR ON)

5W - 8W

Material

Metal / Plastic
